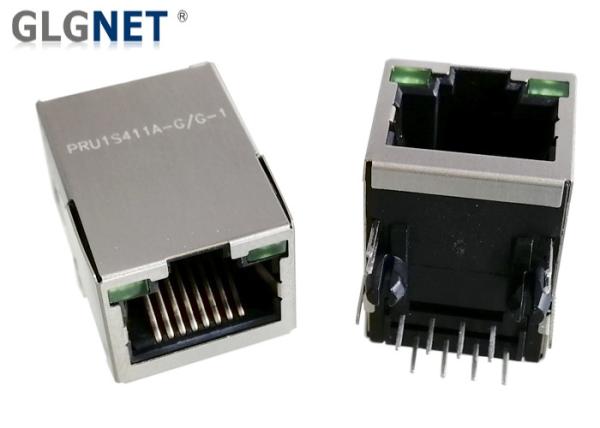

GLGNET 10/100 Shielded Magnetic RJ45 Connector Tab Up with LED 30u" AU Plating

1. GLGNET 10/100 Shielded Magnetic RJ45 Connector(PRU1S411A-GG-1) Structure:

  • 1x1 Single Port
  • Tab Up
  • Without EMI Spring
  • With 10/100 Base-T Integrated magnetics
  • With Green/Green LED
  • With Matel Shielding shell
  • 30U" AU plating on mating interface
  • Connector Body Lenght : 21.5 mm
  • Connector Body Width : 15.7 mm
  • Connector Body Height : 17.4 mm
  • Signal Pins Length : 3.2 mm
  • Signal Pin pitch: 2.7 mm

2. GLGNET 10/100 Shielded Magnetic RJ45 Connector(PRU1S411A-GG-1) Materials

  • Housing: Class Filled PA46 UL94V-0 (ROHS)
  • Sheliding: 0.2mm thickness With Brass (RoHS)
  • Contact: Phosphor Bronze, 50-100 Microinches Min Nickel Plating overall, 30 Microinches Gold Plating on Mating Interface
  • The Part is recommended for wave soldering process, Soldering process is 260 ℃ Max 10 Secondes Max
  • Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
  • All the Raw materials meet RoHS
  • Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 to 85 ℃

3. GLGNET 10/100 Shielded Magnetic RJ45 Connector(PRU1S411A-GG-1) Electrical Specification:

Parameter Specification
Brand GLGNET
Operating Temperature 0 to 70 ℃
Turns Ratio 1:1±3%

Open Circuit

Inductance (ocl)

350uH MIN@ 100KHz/100mV with 8mA DC Bias
Insertion Loss (IL) -1.0dB MAX @ 0.3MHz – 100MHZ;

Return Loss (RL)

Z out = 100 OHM

-18dB MIN @ 1MHz – 30MHZ;

-13dB MIN @ 30MHz – 60MHZ;

-10dB MIN @ 60MHz – 100MHZ;

Crosstalk

Adjacent Channels

-30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR) -30dB MIN @ 1MHz – 100MHZ
HI - POT 2250 VDC @ 60 Seconds

4. GLGNET 10/100 Shielded Magnetic RJ45 Connector(PRU1S411A-GG-1) Attributes:

Part Number PRU1S411A-GG-1 Brand GLGNET
Place of Origin Guangdong of China Certification CE /UL/FCC/Reach/RoHS
Product Type  Magnetic RJ45 Connector Connector Style Modualr Jack
Latch Style Without Latch Spring Tab Up
Filter With 10/100 Base-T Integrated Transformer LED Option With Green/Green LED
Shielded Yes Applies To  Routers, Hubs, VOIP etc.
Performance Speed 10 / 100 BASE-T Grounding Options Panel Ground and PCB Ground
Port Configuration  Single Number of Positions  8
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material 0.2mm Brass PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Material  Gold 1.8u"/3u"/6u"/15u"/30u"/50u" Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole Board Lock Yes
Housing Material  PA46 Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

5. GLGNET 10/100 Shielded Magnetic RJ45 Connector(PRU1S411A-GG-1) Applications:

  • IDC(Internet Data Center)
  • Web Servers
  • Work Station
  • Hub
  • Mother Boards
  • Switches
  • Splitters
  • Routers
  • PC/Laptop
  • Printer
  • VOIP
  • Set-Top Box
  • IP Camera

This is not a definitive list of applications for this product. It represents some of the more common uses.
